3G 4G Quectel 5G Module LC29Y GNSS 10Hz External Internal Antenna

3G 4G Quectel 5G Module LC29Y GNSS 10Hz External Internal Antenna

Specifications:

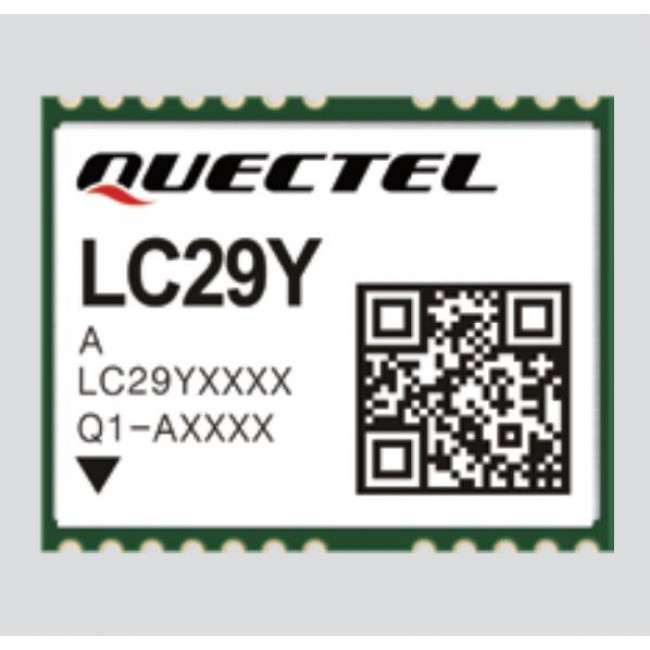

Quectel LC29Y GNSS module

* Dimensions: 16 × 12.2 × 2.4mm

* Weight: 0.9g

* GNSS: GPS/ BeiDou/QZSS/GLONASS

* Form factor: LCC

* Operating Temperature: -40 °C ~ +85 °C

* Storage Temperature: -40 °C ~ +90 °C

* Chip Solution: HD8040D

* L1 Band Receiver (C/A Code) Channel Number: 96 Track/ 40 Acq

* L1 Band Receiver (C/A Code) SBAS: WAAS/ EGNOS/ MSAS/ GAGAN

* A-GNSS: Supported

* Sensitivity:
- Autonomous Acquisition: -148dBm
- Reacquisition: -158dBm
- Tracking: -160dBm

* TTFF (Time To First Fix)
- Cold Start: <30s
- Warm Start: <25s
- Hot Start: <2s

* Position Accuracy(autonomous): <1m CEP(PTD)

* Velocity Accuracy(without aid): 0.1m/s

* Maximum Acceleration Accuracy (without aid) <0.1m/s²

* Timing Accuracy (1σ):

* Max Update Rate: 10Hz

* Baud Rate(default): 115200bps

* Geo-fence: N/A

* Built-in LNA

* Electrical Data
- Power Supply: 2.0V to 3.6V
- I/O Voltage: 2.0V to 3.6V
- Power Consumption (Acquisition): 43mA (GPS+Beidou+GLONASS+Galileo+QZSS)
- Power Consumption (Tracking): 43mA (GPS+Beidou+GLONASS+Galileo+QZSS)
- Power Consumption (Backup/Low power mode): 13μA

* Interfaces:
- UART
- IIC(NMEA):
- USB
- Reset
- Time Pulse

* Antenna
- Short-Circuit Protection & Open-Circuit Detection: N/A
- Antenna Type: Active or passive
- Antenna Power: External or internal
- Certifications: CE

* Recommended Applications: Vehicle Tracker,Industrial PDA, OBD etc.
