Specifications:

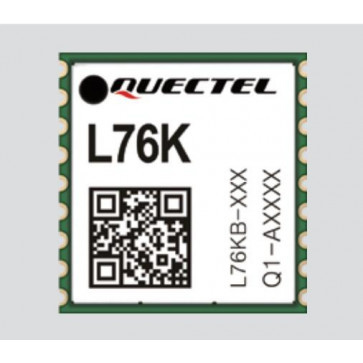

Quectel L76K GNSS Module

* GNSS: GPS/ BeiDou/QZSS/GLONASS

* Form factor: LCC

* Dimensions: 10.1 × 9.7 × 2.0mm

* Weight: 0.4g

* Operating Temperature: -40 °C ~ +85 °C

* Storage Temperature: -40 °C ~ +90 °C

* Chip Solution: AT6558R

* L1 Band Receiver (C/A Code) Channel Number: 32 Track/ 46 Acq

* L1 Band Receiver (C/A Code) SBAS: WAAS/ EGNOS/ MSAS/ GAGAN

* A-GNSS: Supported

* Sensitivity:
- Autonomous Acquisition: -148dBm
- Reacquisition: -160dBm
- Tracking: -162dBm

* TTFF (Time To First Fix)
- Cold Start: <30s, Autonomous , <15.5s, With EASY™
- Warm Start: <2s, Autonomous , <2s, With EASY™
- Hot Start: <2s

* Position Accuracy(autonomous): <2.0m CEP

* Velocity Accuracy(without aid): <0.1m/s

* Maximum Acceleration Accuracy (without aid) <0.1m/s²

* Timing Accuracy (1σ): <30ns

* Max Update Rate: 5Hz

* Baud Rate(default): 9600bps

* Geo-fence: N/A

* Jamming Detection: N/A

* Anti-jamming: N/A

* Built-in LNA

* Electrical Data
- Power Supply: 2.7V to 3.4V
- I/O Voltage: 2.7V to 3.4V
- Power Consumption (Acquisition): 29mA (GPS+GLONASS)
- Power Consumption (Tracking): 29mA (GPS+Beidou)
- Power Consumption (Backup/Low power mode): 8μA

* Interfaces:
- UART
- IIC(NMEA):N/A
- CAN: N/A
- Reset
- Time Pulse

* Antenna
- Short-Circuit Protection & Open-Circuit Detection
- Antenna Type: Active or passive
- Antenna Power: External or internal
- Certifications: N/A

* Recommended Applications: Vehicle Tracker, Asset Tracker, Safety, Industrial PDA or PND, Digital Camera, etc.
