Unlocked 5G Home Openwrt Modem X55 AW1000 WiFi 6 AX3600 Gigabit Ethernet Port 5G CPE Mesh WiFi Router OpenWrt Sim Card

Unlocked 5G Home Openwrt Modem X55 AW1000 WiFi 6 AX3600 Gigabit Ethernet Port 5G CPE Mesh WiFi Router OpenWrt Sim Card

Model Number:	AX1000
MOQ:	1
Delivery Time:	10
Payment Terms:	T/T

Detail Information

Product Description

Detail Information

Place of Origin:

China

Highlight:

Unlocked 5G WiFi 6 router

OpenWrt 5G CPE modem

AX3600 Mesh WiFi router

Product Description

Key attributes

type

CPE

products status

New

WiFi Transmission Standard

WiFi 802.11 ax

2.4g wi-fi transmission rate

1200 Mbps

Supports WDS

Yes

Antennas

2 external antennas

Supports WPS

Yes

5g wi-fi transmission rate

2167Mbps

private mold

with modem function

Yes

standards and protocols

Wi-Fi 802.11g, Wi-Fi 802.11b, Wi-Fi 802.11a, Wi-Fi 802.11ac, Wi-Fi 802.11ax

wifi supported frequency

2.4G & 5G

Encryption Type

WPA2-PSK, WPA2, WPA3, WPA-PSK

lan ports

max. lan data rate

1750Mbps

application

Multi-service

WAN Ports

wired transfer rate

10/100/1000Mbps

function

Voip, FireWall, QoS, VPN, SDK available

place of origin

Guangdong, China

Product Description

Unlocked 5G Home Openwrt Modem X55 AW1000 WiFi 6 AX3600 Gigabit Ethernet Port 5G CPE Mesh WiFi Router OpenWrt Sim Card

This modem is unlocked and works in most of countries
Telstra AW1000 5G modem. The modem is mains-powered, has a clean matte finish, and is a bit tall and chunky. In terms of
functionality, you get the standard inclusions: four Ethernet LAN ports, one WAN port, a full-size USB port, dual-band WiFi, and
even supports WiFi 6.

The AW1000 5G Modem acts more as a consistent home connection, rather than the hotspot nature of the 5G Wi-Fi Pro. It comes in a
relatively tall and boxy frame, giving off that modem feel that typical broadband networks tend to have.

The Telstra 5G Home Modem is designed to make setting up a 5G Home Internet connection as easy as possible. All it needs is power,
plus placement in the part of your home that receives the Telstra 5G .

The modem relies on an easy-to-understand, light-based system for an indication of how the 5G is. There's also a 2.5GB WAN/LAN
port, four gigabit Ethernet ports, and a WPS push button for straightforward WiFi connectivity with compatible devices.

For faster local network speeds, the Telstra 5G Home Modem has inbuilt WiFi 6, which means it won't be a bottleneck when
connecting WiFi 6 devices to the speedy potential of 5G internet. It's a dual-band router, too, meaning you can take advantage of
the faster 5GHz local WiFi band and the longer-range 2.4GHz band, too.

Hardware:
Qual-comm IPQ8072A
1G RAM+1G ROM
QCN5024+QCN5054, AX3600
Interface: 2.5G * 1+1G * 4, RJ11 * 1, and 1 USB 3.0 port, antenna interface * 2
The internal module is RG500Q-EA (Qual-comm x55)
Product Model
Telstra 5G Home Modem AW1000
LED Light
Wi-Fi, WPS, RESET

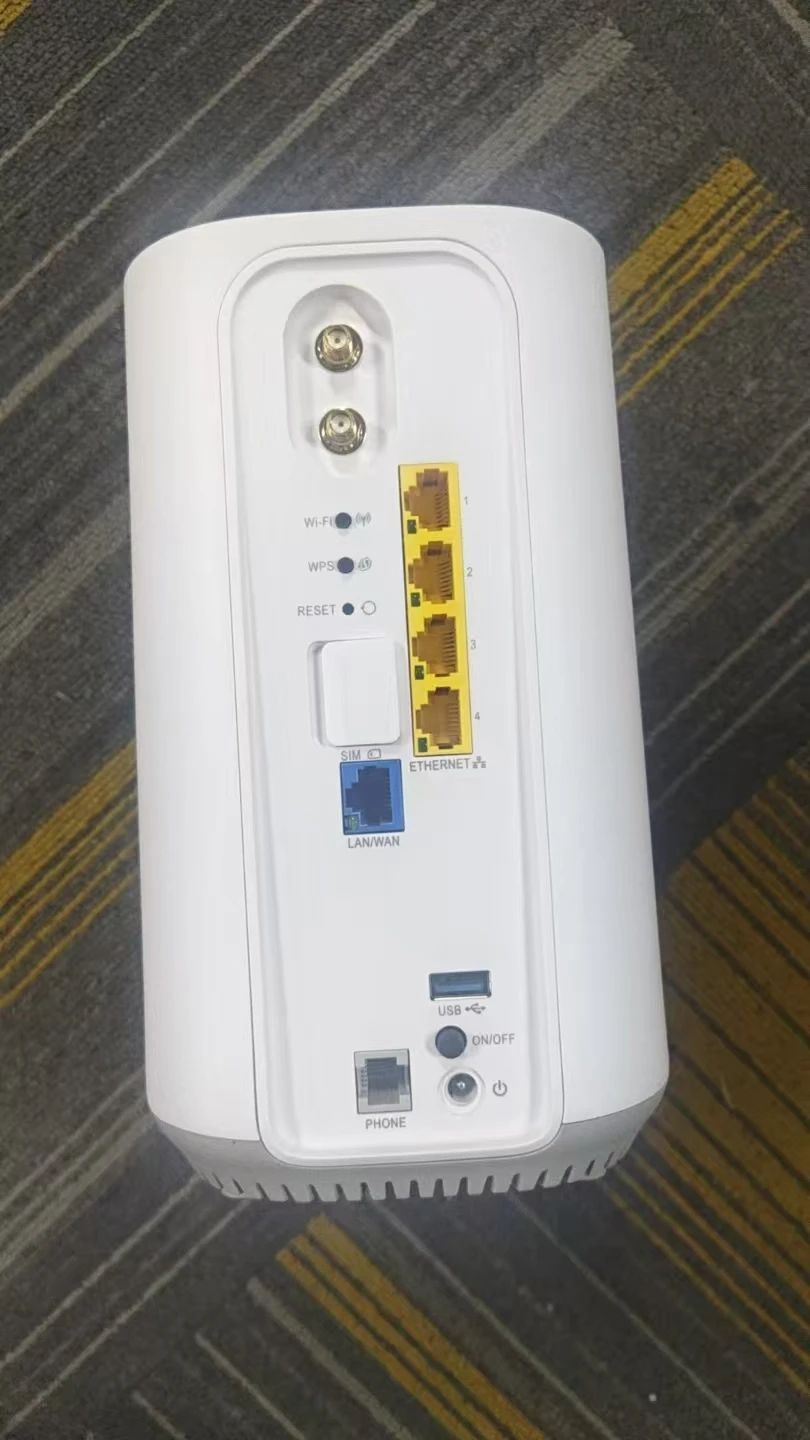

Interfaces
1 x LAN/WAN Port
4 x LAN Gigabit Ethernet Port
1 x Phone Port
1 x USB 3.0 Port
1 x Sim Card Slot
2 x Antennas Port
Frequency Band
5G NR NSA
n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78/n79 n2/n5/n7/n12/n25/n41/n48/n66/n71/n77/n78
5G NR SA
n1/n3/n5/n7/n8/n20/n28/n38/n40/n41/n77/n78/n79 n2/n5/n7/n12/n25/n41/n48/n66/n71/n77/n78
LTE-FDD
B1/B3/B5/B7/B8/B18/B19/B20/B26/B28/B32/B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B29/B30/B66/B71
LTE-TDD
B34/B38/39/B40/B41/B42/B43 B41/B42/B43/B48
WCDMA
B1/B3/B5/B6/B8/B19 B2/B4/B5
Wi-Fi Standards
EasyMesh
802.11 a/b/g/n/ac/ax, Wi-Fi 6 AX3600Mbps
2.4GHz & 5GHz
Security
Protected Management Frames
WPA™-Personal
WPA2™-Personal
WPA3™-Personal

Specification

item	value
With Modem Function	Yes
Type	CPE
Standards And Protocols	Wi-Fi 802.11ax, Wi-Fi 802.11a, Wi-Fi 802.11b, Wi-Fi 802.11g, Wi-Fi 802.11ac
Encryption Type	WPA2-PSK, WPA2, WPA3, WPA-PSK
Products Status	New
LAN Ports	4
Place of Origin	China
Province	Guangdong
Max. LAN Data Rate	1750Mbps
Wi-Fi Supported Frequency	2.4G & 5G
2.4G Wi-Fi Transmission Rate	1200 Mbps
Supports WDS	Yes
Supports WPS	Yes
Wi-Fi Transmission Standard	WiFi 802.11 ax
Wired Transfer Rate	10/100/1000Mbps
Private Mold	NO
Application	Multi-service
Function	Voip, FireWall, QoS, VPN, SDK available
Brand Name	Arcadyan
5G Wi-Fi Transmission Rate	2167Mbps
Product name	Telstra 5G Home Modem AW1000
Telstra 5G Home Modem AW1000	Wi-Fi, WPS, RESET
LAN PORTS	4 x LAN Gigabit Ethernet Port
Dual WiFi Band	2.4GHz & 5GHz
Antennas Port	YES
WiFi Speed	3600Mbps WiFi 6
Weight	2KG
